Technical Details for the Miniature Series Inline Relief Valves
Port Sizes: 1/8″ & 1/4″
Flow Rate: Up to 40 scfm (18 l/s)
The Miniature Series Relief Valves from Ross are designed to offer a compact and efficient solution for pressure relief in various applications. These inline relief valves are distinguished by their high-quality diaphragm construction, ensuring precise and reliable pressure control.
Key features of the Miniature Series include:
- Diaphragm Construction: This design feature ensures accurate pressure regulation and enhances the valve’s durability and performance.

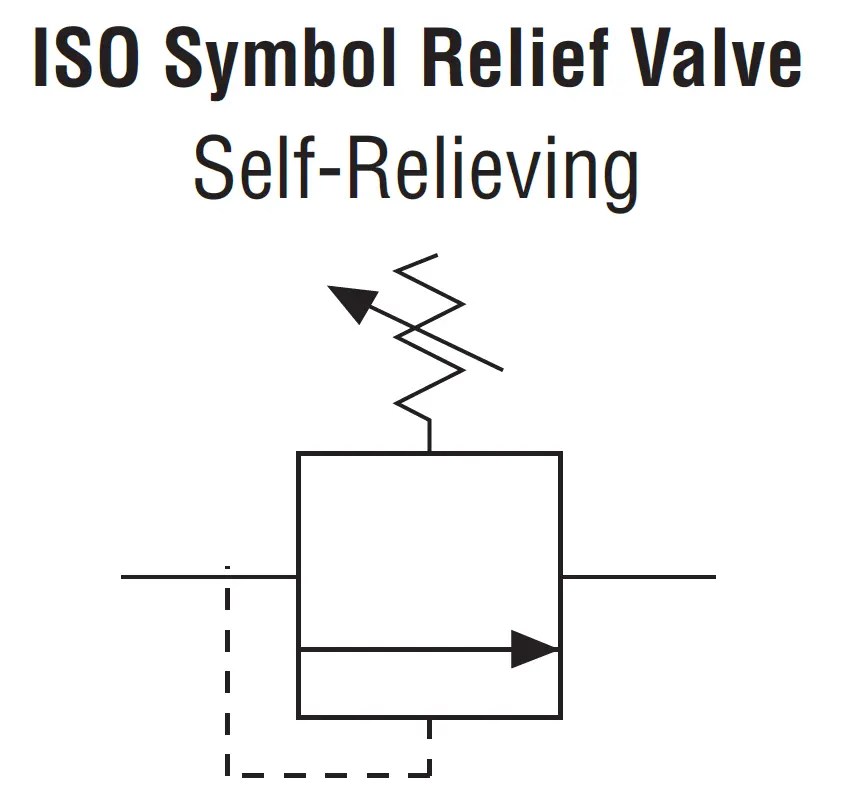

- Self-Relieving Capability: These valves are self-relieving, allowing them to efficiently manage and relieve excess pressure, thereby maintaining system stability and safety.

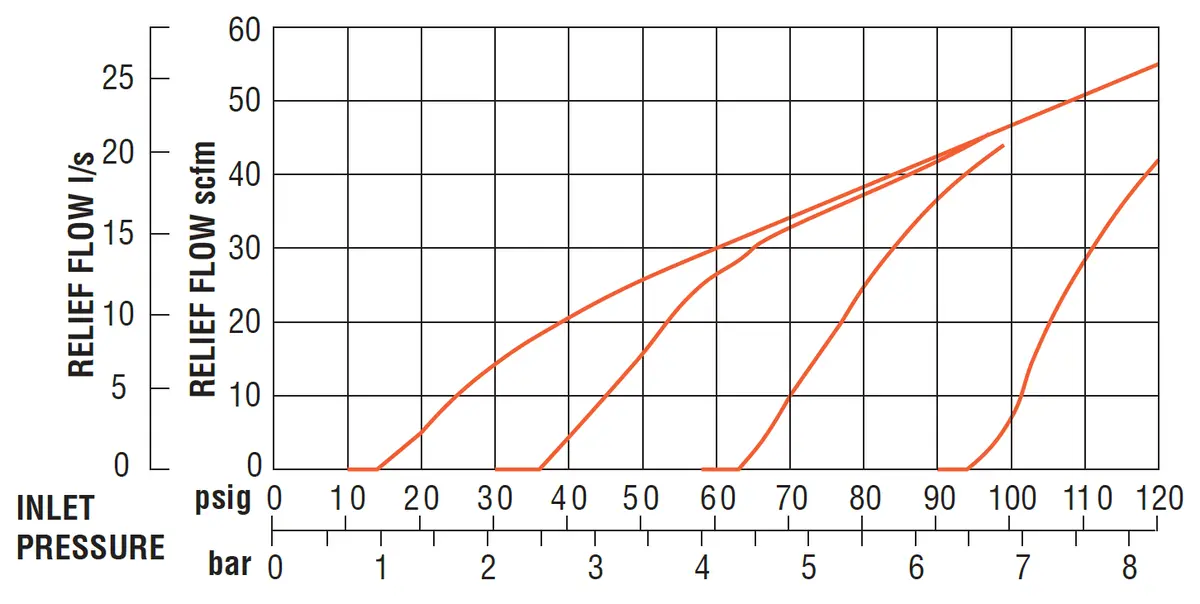

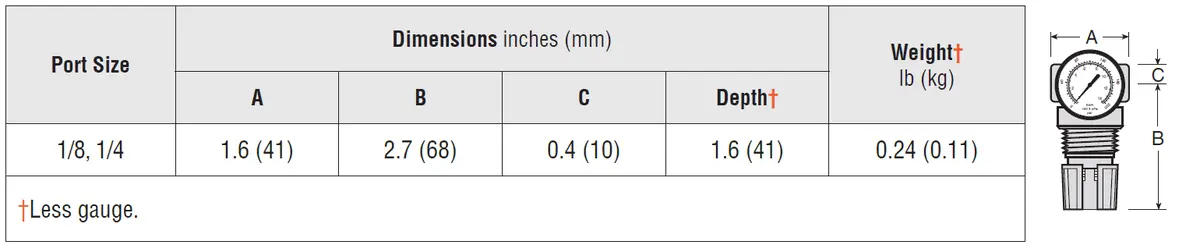

Relief valves have a maximum relief flow of 10 to 20 scfm (4.7 to 9.4 l/s). If you are looking for more sensitivity at lower pressures, please feel free to contact us for assistance.
| Construction | Self-Relieving diaphragm |
| Ambient Temperature | 4oC (40oF) to 52oC (125oF) |
| Fluid Media | Compressed Air |
| Inlet Operating Pressure | Maximum 300 psig (21 bar) |
| Outlet Operating Pressure | Adjustable 1 to 140 psig (0.07 to 9.6 bar) |
| Pressure Gauge | 0 to 160 psig (0 to 11 bar) 1/8″ NPT gauge ports front and rear |
| Panel Mounting | 1-3/16″ (30mm) hole required |
| Body | Aluminium |
| Dome | Acetal |
| Knob | Acetal |
| Seals |
Nitrile Fluoroelastomer seals optional (consult manufacturer) |
| Manufacturer | Ross Controls |
