Description
Technical Details for the V1 Vane Motor
| Part Numbers | V1 |

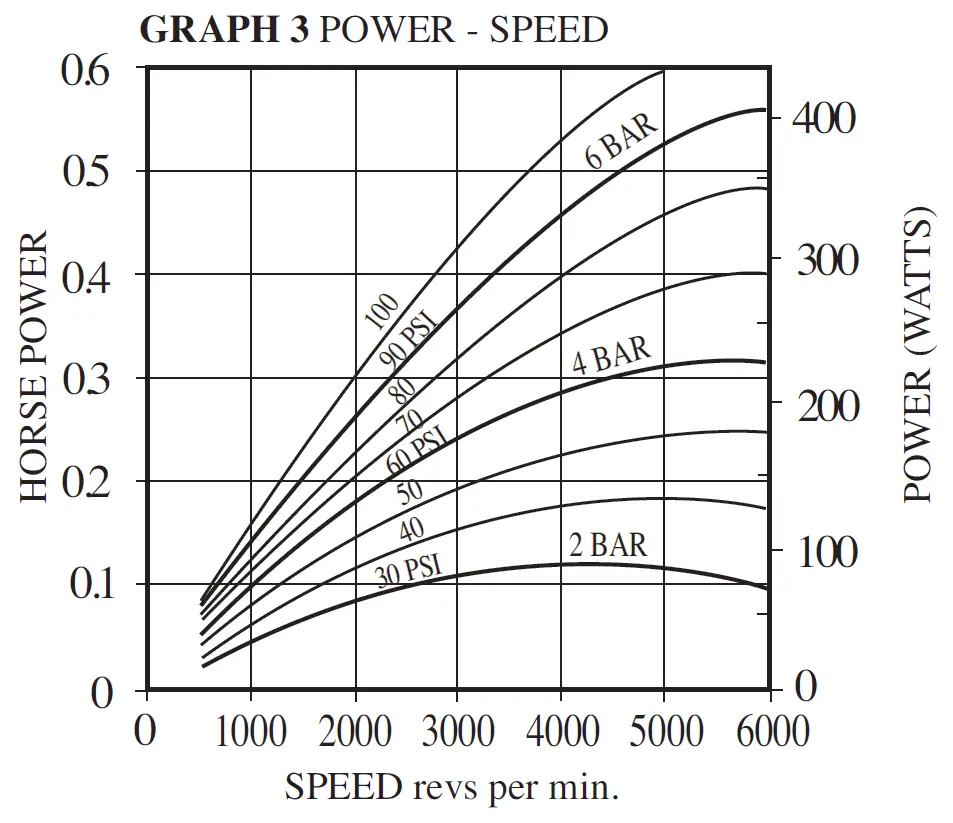

| Peak Power | 6000rpm |

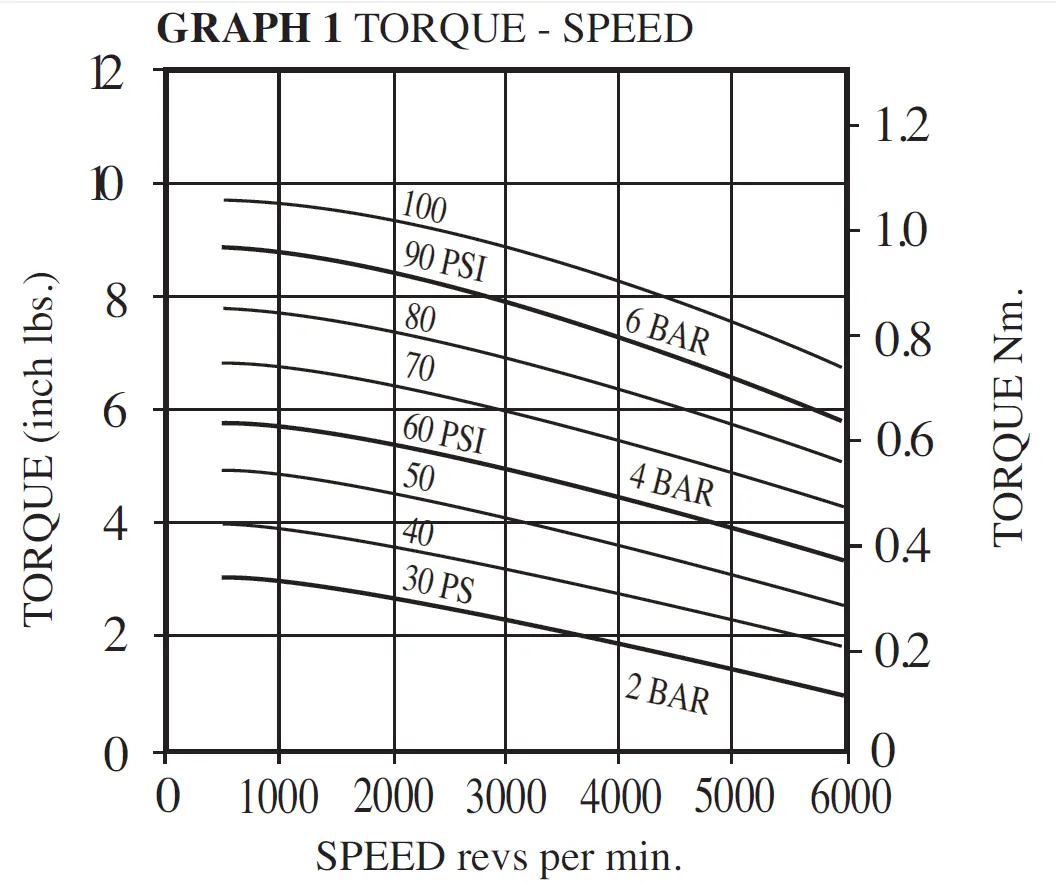

| Nominal Torque | 0.84 Nm (7.4 inch lbs.) |

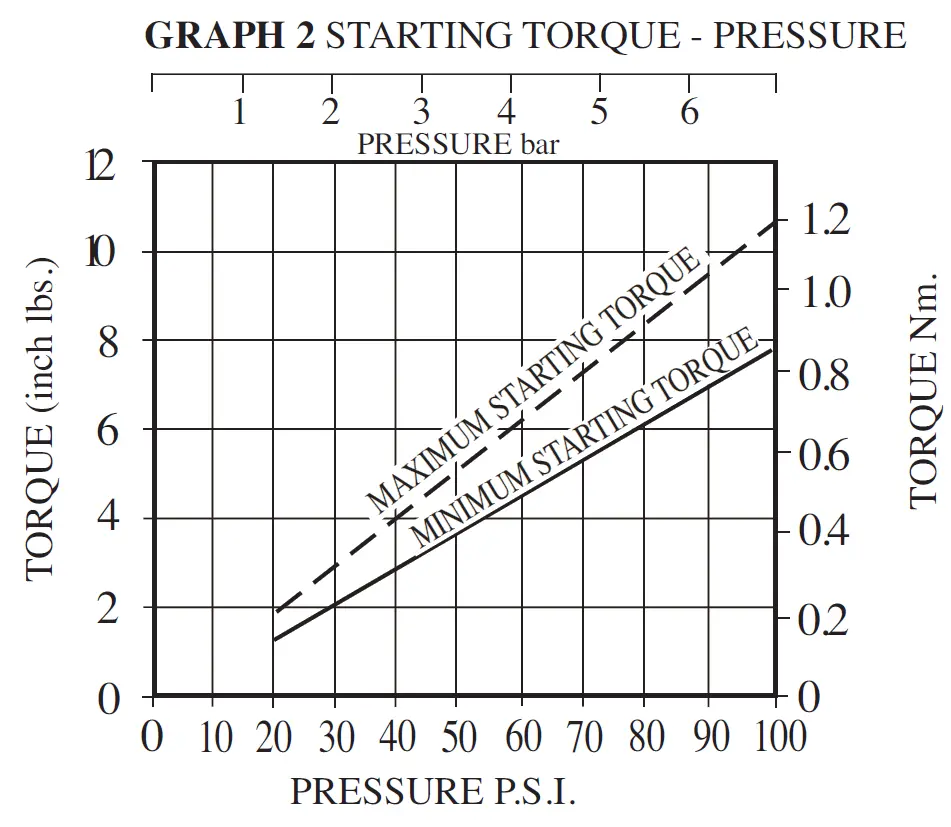

| Min. Starting Torque | 0.77 Nm (6.8 inch lbs.) |

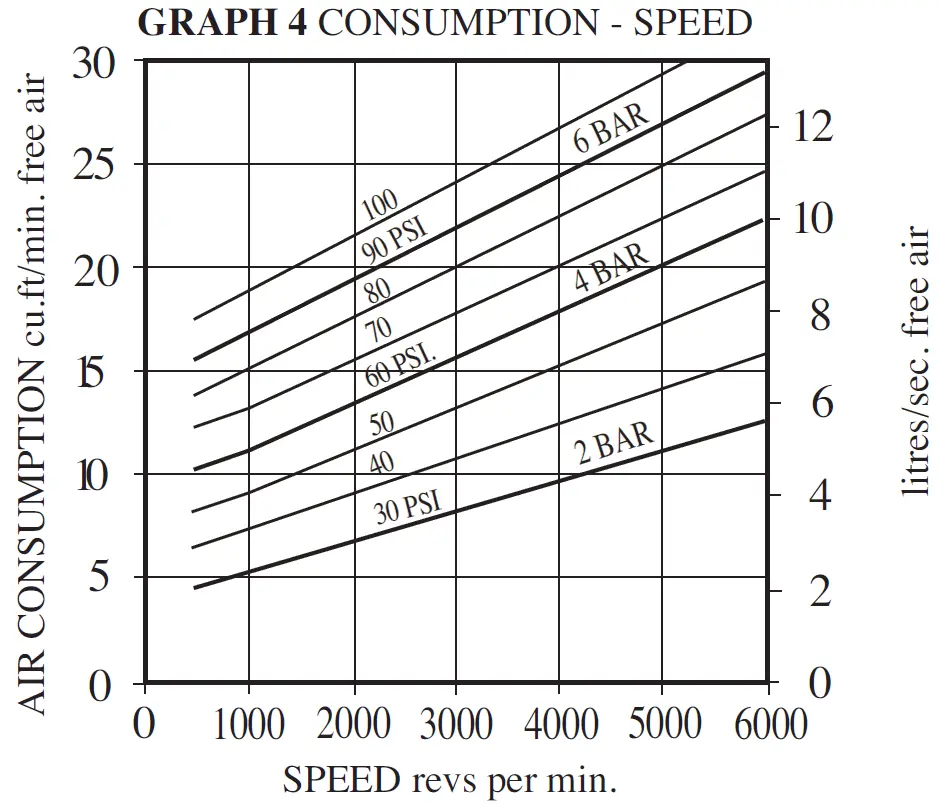

| Air Consumption | <18 litres/sec free air |
| Max. Working Pressure | 7 bar |
| Operating Temperatures | -20oC to 60oC |
| Airline Filtration | <64 μm |
| Lubrication Oil | |
| Lubrication | Continuous: 2 to 3 drops per minute Intermittent: 4 to 6 drops per minute |
| Shaft | |
| Air Connection | 1/4″ NPT |
| ATEX | EX II 2G Ex h IIC T4 Gb II 2D Ex h IIIC T135°C Db |
| Manufacturer | Globe Airmotors B.V. |
