Name: V8 Robust Vane Air Motor – 5.4 kW Output
Brand: Globe Airmotors B.V.
SKU: 40339
Availability: InStock

Description

Technical Details for the V8 Vane Motor

Part Numbers	V8
Peak Power	3000rpm

Nominal Torque	18.44 Nm (13.6 lb-ft)

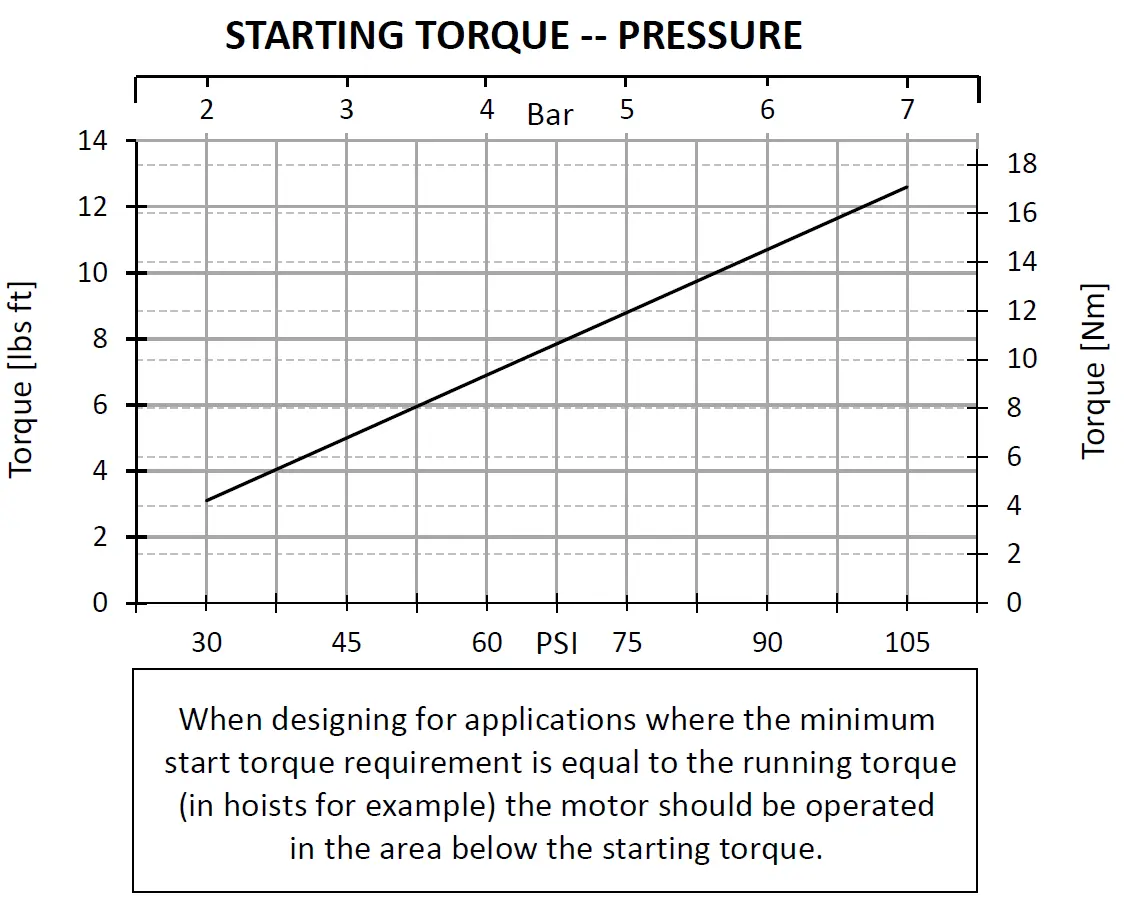

Min. Starting Torque	17.09 Nm (12.6 lb-ft)

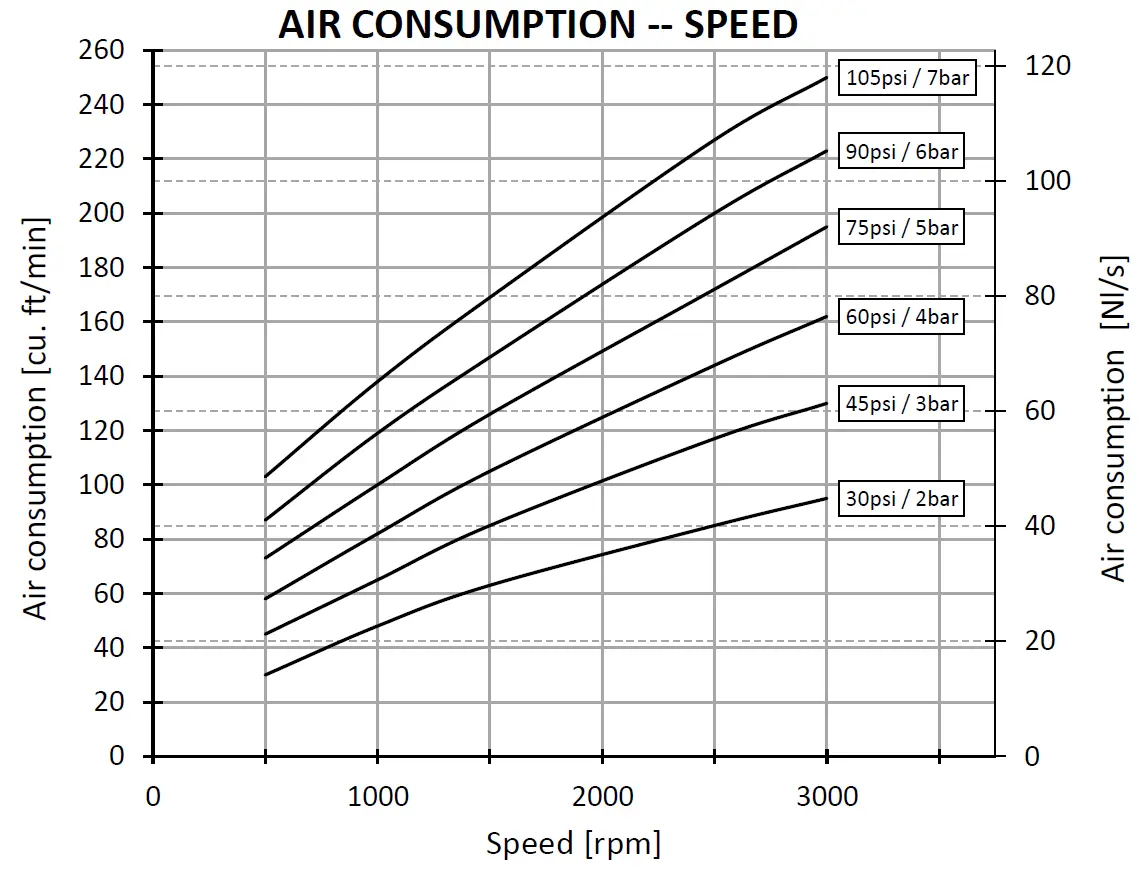

Air Consumption	<120 N litres/sec
Max. Working Pressure	7 bar
Operating Temperatures	-20^oC to 60^oC
Airline Filtration	<64 μm
Lubrication Oil
Lubrication	Continuous: 6 to 7 drops per minute Intermittent: 12 to 15 drops per minute
Shaft	Keyed Shaft
Air Connection	1″ NPT
ATEX	EX II 2G Ex h IIC T4 Gb II 2D Ex h IIIC T135°C Db
Manufacturer	Globe Airmotors B.V.
